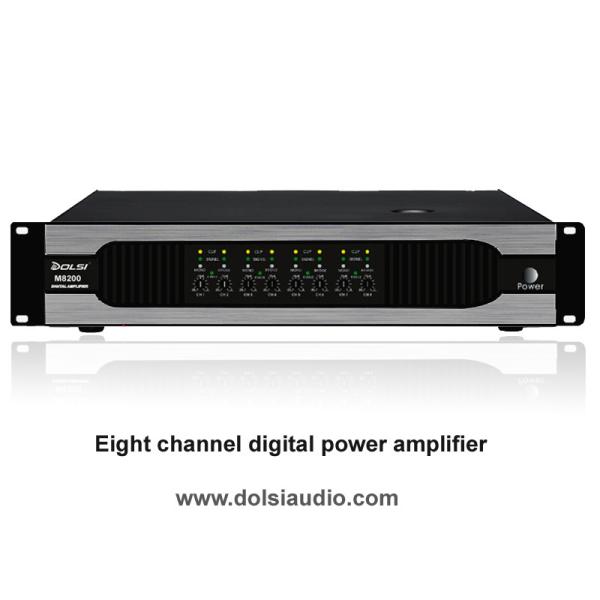

Eight Channel Class D Digital Power Amplifier M8200
Patented Designed
Color: black case wtih brush-finished color front panel
Power output: 300Wx2 at 8Ω
Heihgt : 2 unit ( 88mm)
Channel number : eight channels
OEM order: accepted
Sample delivery : within one week after payment
Batch order delivery: 20-30days upon receipt of deposit
Specifications:
| Model No. | M 8200 | ||
| Channel number | 8 input, 8 output | ||
| Output power | 8Ω | 300Wx8 | |
| Output power | 4Ω | 500Wx8 | |
| Bridge output power | 8Ω | 1000Wx8 | |
| Distortion ( 1kHZ,=10dB/4 Ohms) | <0.2% | ||
| S/N Ratio (20Hz-20Khz,4 Ohms) | >112dBA | ||
| Cross Talk (1kHZ, 4 Ohms) | >70dB | ||
| Frenquency response | 10Hz to 20k Hz,+/-1dB | ||
| Input Impedanace | balanced 20K/ non-balanced 10K | ||
| Damping factor(10-400Hz,8Ohms) | >300 | ||
| Output category | Class D | ||
| Sensitivity | 0dB | ||
| Protection | short circuit , direct current, overload, low voltage | ||
| Control Knobs | Power on/off switch in front panel, gain control in front panel, Mono and bridge selection on rear panel | ||
| Led lights | Clip/-10dB/signal/Mono/bridge/Status/Active/Protect indication light on front panel | ||
| Power delay | 4 seconds | ||
| Input connector | XLR input socket | ||
| Output connector | SPEAKON connector | ||
| Size (WxHxD) | 483x88x350mm | ||
| Net Weight | 15.30kg | ||
| Packing size | 560x150x470mm | ||
PRODUCT Highlights:
Each piece of product with polyfoam protection packed into a paper carton. Or packed as per client's request.
Good Service to you:
1. Manufacturing with Dolsi brand.
2. Manufacturing with your brand ( OEM).
3. Manufacturing with your design, your specification and your brand ( ODM).
4. Closely following up, fluent communication, quick feedback and action to any of your query or request for sampling, order, production,shipment, documents and after-sales service.
